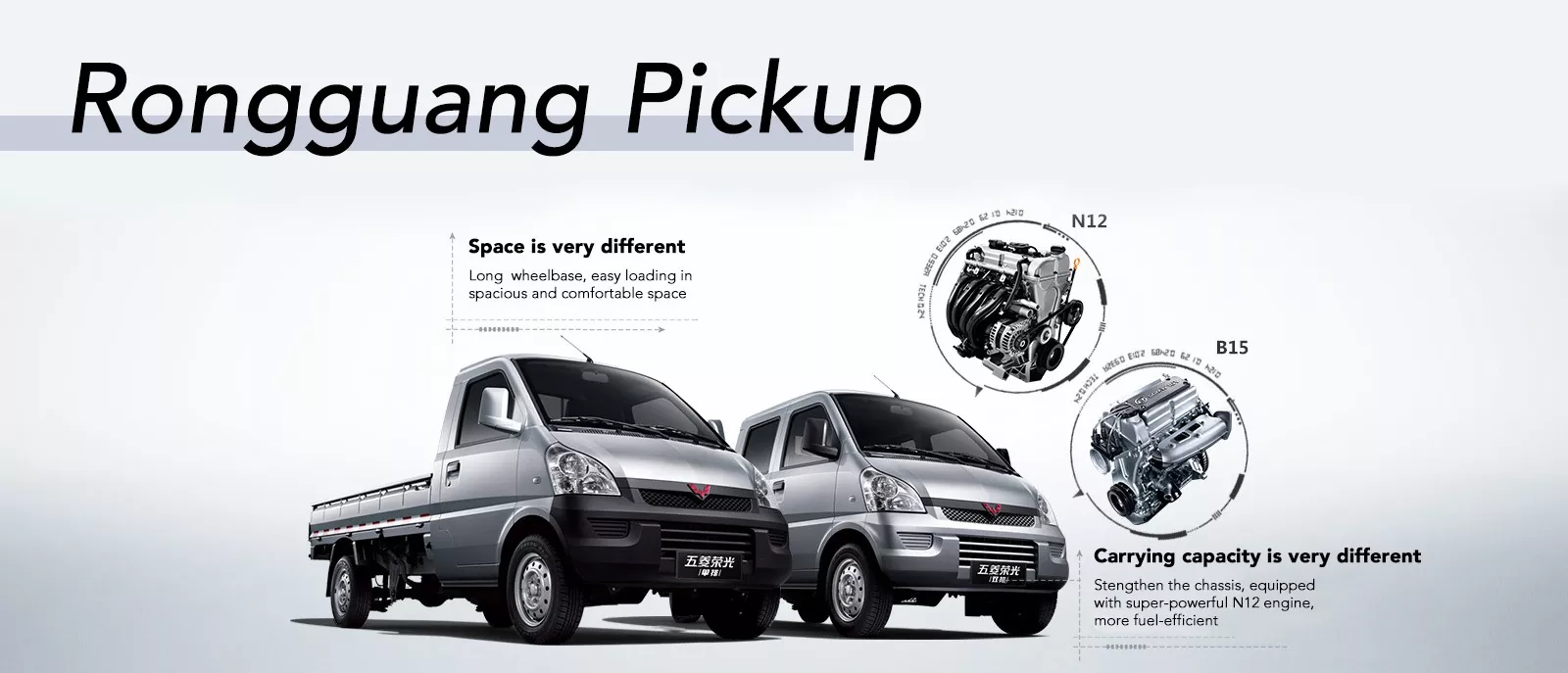

Rongguang Pickup

Wuling Rongguang Mini Truck is a micro truck launched by SAIC GM Wuling, positioned in the niche market between light trucks and micro trucks, mainly targeting freight and entrepreneurial scenarios. The basic version was launched in June 2008, and the extended version was launched in August 2022, offering a choice of single and double row models with a wheelbase of 3050mm and an extended cargo box length of 2.96 meters, further enhancing loading capacity.

The car is centered around high load-bearing performance and adopts a one-time stamping forming of the main beam. The maximum thickness of the reinforced secondary crossbeam for single row models is 210mm, and the frame contains 7 reinforced crossbeams, with high-strength steel accounting for 85%. Equipped with B12 engine, DOHC dual overhead camshafts, EGR exhaust gas circulation and other technologies, the comprehensive fuel consumption is 7.5L/100km [2-3]. In terms of safety, it adopts the energy absorbing structure of Wuling Rongguang passenger cars, equipped with a 10 inch vacuum booster, and has passed reliability tests that exceed national standards by 2.5 times. The interior adopts a "T" - shaped layout, equipped with electronic instruments and adjustable seats.

With the development of the automobile market, the segmented market of trucks is gradually expanding, including heavy trucks, medium trucks, light trucks, micro trucks, etc. However, recently there is another segmented model among light trucks and micro trucks, which is small trucks. Compared to bulky light trucks and slim micro trucks, small trucks can be said to be the culmination of both.

Large Load Capacity - Superior Loading Performance

The Wuling Rongguang Pickup adopts a design with 7 reinforced crossbeams in the load-bearing area, and the proportion of high-strength steel used in the entire vehicle is 85%. High strength optimization design has been carried out on the rear leaf spring, using the maximum of 6 steel plate springs among micro trucks. The internal and external reinforcement ribs of the suspension ear are designed to provide stronger load-bearing capacity and durability. Designed with 5 special tire bolts. 175/70R14 LT light-duty truck tires have strong load-bearing capacity, and the full load weight of the vehicle reaches 2110KG

Great power - excellent power matching

1. Equipped with SAIC GM Wuling B12 engine, the highlights of this series of engines include:

① DOHC dual overhead camshaft 16V

② PDA multi valve technology

③ EGR exhaust gas recirculation technology

④ composite material intake manifold

⑤ low friction crankshaft connecting rod mechanism

⑥ low inertia piston

⑦ low inertia valve mechanism

⑧ maintenance free timing chain

⑨ multiple guarantees: first-class equipment, first-class management, first-class personnel, first-class quality

2. Transmission ratio adjustment - the first gear ratio of the transmission is 3. 769 has been increased to 3. 857, the rear axle speed ratio is 5. Increase 125 to 5. 286, torque output increased by 5%; Enhanced the power performance of Wuling Rongguang small truck at low speeds and uphill. The Wuling Rongguang small truck not only has super strong carrying capacity and good power, but also maintains economical fuel consumption: suburban fuel consumption: 6. 5L/100km； Urban fuel consumption: 9. 2L/100km； Comprehensive fuel consumption: 7. 5L/100km.

3. The transmission shaft is designed in two sections, with reinforced support in the middle and high-precision gears used to improve transmission efficiency and reduce noise and vibration of the transmission shaft. The design size of the strengthened rear axle assembly of Wuling Rongguang small truck has been increased; Adopting a reinforced master-slave gear design, it has super strong load-bearing capacity and driving force; The rear axle adopts a detachable design, making maintenance more convenient.

4. The Wuling Rongguang small truck adopts a reinforced tube type rear axle design, effectively avoiding rear axle oil leakage. The Wuling Rongguang small truck adopts a thickened bridge shell sleeve, which increases the outer diameter of the rear axle tube by 23% and strengthens the wall thickness of the rear axle tube by 20% compared to the Wuling Rongguang micro car.

5. The Wuling Rongguang small truck adopts a reinforced half axle design; Compared to Wuling Rongguang Micro, the diameter of the half shaft has increased by 14%. Wuling Rongguang small truck adopts reinforced double row wheel hub bearing design; Compared to Wuling Rongguang Micro customer bearings, the width has increased by 74%.

Big brand - excellent quality inheritance

On October 19, 2010, the China Association for Quality and the National User Committee announced the results of the "2010 China Automotive User Satisfaction Evaluation". SAIC GM Wuling, a leading domestic microcar company, once again won the championship in the microcar product category after 2008 and 2009. Among them, Wuling Rongguang and Wuling Zhiguang have won the championship and runner up for two consecutive years with excellent quality. Since its launch in June 2008, the Wuling Rongguang has become a hot selling model in the market: in 2009, the sales of the Wuling Rongguang reached 29. 40000 units. In 2010, the monthly sales of Wuling Rongguang exceeded 30000 units, and the market momentum remains very strong. SAIC GM Wuling is increasingly improving its service network, with a county-level network coverage rate of 51%, ranking first in the microcar industry. With the effective promotion of professional, standardized, and regulated after-sales service standards, SAIC GM Wuling's service brand value of "professional service, trusted trust" has been recognized by a large number of users.

1. Appearance: The Wuling Rongguang small truck continues the classic exterior design of Wuling Rongguang, with coordinated body proportions and smooth lines; Not only beautiful and elegant, but also effectively reduces wind resistance; Combination design of brake lights, fog lights, and reversing lights. The Wuling Rongguang small truck adopts a three-dimensional European style large field rearview mirror, which has a larger rear view area. The Wuling Rongguang small truck adopts reflective markings on the cargo compartment board, making night driving safer.

2. Interior: The interior design continues Wuling's unique "T" - shaped design theme, featuring a large and micro sedan style interior design. The rounded cross-section, curves, and other circular design elements are perfectly combined with the large surface and straight line features, giving the entire vehicle a generous and rugged appearance. Wuling Rongguang small truck adopts electronic instrument with tachometer; The front seat angle is adjustable, with a maximum sliding range of 130mm. The foot rest pedal is convenient for customers to drive for long periods of time; The Wuling Rongguang double row seats have spacious and comfortable rear seating space, with armrests on the roof for a safer ride; The unobstructed design under the rear seats facilitates the placement of various items.

3. Safety: The safety of the Wuling Rongguang small truck comes from the Weike Wuling Rongguang. Based on the excellent design of Rongguang, CAE simulation technology and virtual 3D numerical modeling are used to optimize and improve the front energy absorption structure, passenger compartment design, and body structure of the passenger compartment. The energy absorbing structure at the front of its passenger compartment is more effective than traditional microcars in absorbing energy during collisions, reducing damage to passengers; Effectively ensuring passenger living space in collisions, safer than traditional N1 class small trucks. The Wuling Rongguang small truck adopts a 10 inch vacuum booster, which increases the braking force to ensure fast and stable braking under full load conditions. The reliability bad road test mileage is higher than the national standard 2. 5 times, other relevant experimental standards far exceed national standards. The Hainan test site has passed a severe overload and bad road experiment, with a total mileage of 8100 kilometers.
